Product Overview:
Design and Build

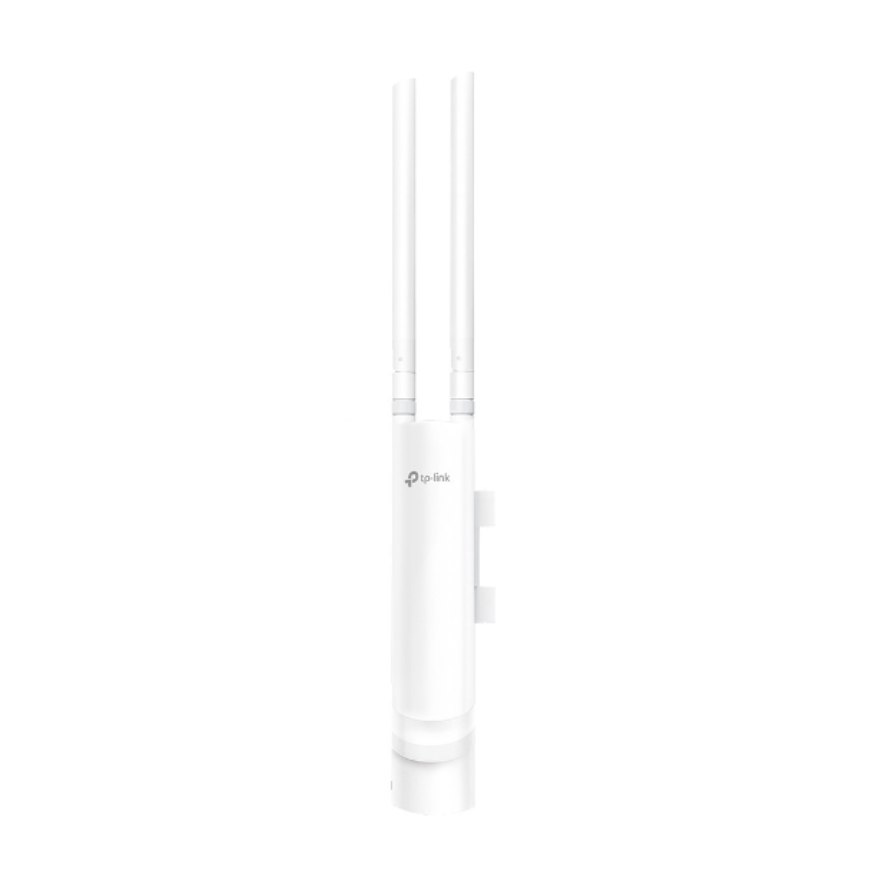

The TP-Link EAP110 is an outdoor wireless access point designed for extending network coverage in outdoor environments. Its rugged, weatherproof design ensures durability and reliability in various weather conditions, including rain, snow, and extreme temperatures. The device is built to withstand harsh outdoor conditions, making it suitable for use in environments such as gardens, parks, and outdoor business areas.
Wireless Performance
- Wi-Fi Standards: The EAP110 supports Wireless N (802.11n) technology with a maximum speed of up to 300Mbps. This speed is sufficient for everyday activities like web browsing, email, and light streaming.
- Coverage: The access point provides broad wireless coverage, extending the range of your existing network to outdoor areas. This feature helps eliminate Wi-Fi dead zones and ensures a stable connection for outdoor devices.
Antenna and Range
- Antennas: The EAP110 is equipped with two external 5dBi antennas that enhance signal strength and coverage. These antennas are designed to provide better performance and wider coverage compared to internal antennas.
- Range: The access point offers a substantial range suitable for outdoor use, ensuring that network connectivity reaches areas beyond the range of indoor access points.
Setup and Configuration
- Easy Setup: The EAP110 is designed for easy installation and setup. It supports a web-based management interface for configuring settings, including network name (SSID), security options, and operating modes.
- TP-Link EAP Controller: For advanced management and configuration, the EAP110 can be managed using the TP-Link EAP Controller software. This software allows for centralized management of multiple EAP access points, providing features such as bulk configuration, monitoring, and reporting.
Performance Optimization
- Power over Ethernet (PoE): The EAP110 supports PoE, which allows it to be powered through the Ethernet cable. This feature simplifies installation by eliminating the need for a separate power supply and reducing cable clutter.
- Multi-SSID Support: The access point supports multiple SSIDs, enabling the creation of separate networks for different user groups or purposes.
Security Features
The EAP110 includes several security features to protect your network:
- WPA/WPA2 Encryption: Provides secure wireless connections by encrypting data transmitted over the network.
- MAC Address Filtering: Allows you to specify which devices can connect to the network based on their MAC addresses.
Durability
- Weatherproof Design: The EAP110 is built to withstand outdoor elements, with an IP65 rating for dust and water resistance. This durability ensures reliable performance even in challenging environmental conditions.
Compatibility
The EAP110 is compatible with various networking devices and standards, making it a versatile solution for extending wireless coverage in outdoor areas. It works with both 802.11n and older wireless devices.
Additional Features
- Wall-Mounting Kit: The access point comes with a wall-mounting kit, allowing for flexible installation options.
- Centralized Management: When used with the TP-Link EAP Controller, the EAP110 can be centrally managed along with other TP-Link EAP access points, simplifying network management and monitoring.
