Product Overview

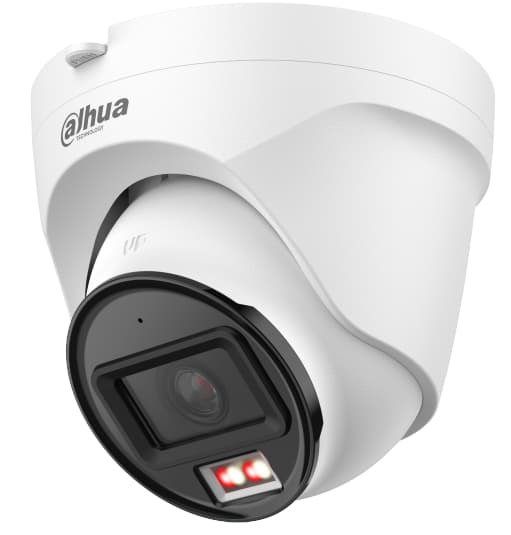

The Dahua DH-HDW1230T2-A is a 2MP Full HD IP dome (eyeball) network camera designed to deliver reliable indoor and outdoor surveillance for homes, offices, retail stores, schools, and small businesses. Equipped with a 3.6mm fixed lens, built-in microphone, 30-meter IR night vision, and support for Power over Ethernet (PoE), it provides high-quality video monitoring with simplified installation. Its IP67 weatherproof enclosure ensures dependable performance in challenging environments.
Full HD 2MP Video Quality
The camera features a 2MP 1/3.2-inch CMOS image sensor capable of recording at a maximum resolution of 1920 × 1080 (Full HD) at up to 30 fps, delivering clear and detailed images for everyday surveillance.
3.6mm Fixed Lens
The built-in 3.6mm fixed-focal lens provides a balanced field of view, making it suitable for monitoring entrances, hallways, offices, retail areas, parking spaces, and residential properties.
Smart H.265+ Video Compression
Supporting Smart H.265+, H.265, Smart H.264+, and H.264 compression, the camera reduces bandwidth consumption and storage requirements while maintaining excellent image quality. This helps maximize recording capacity on compatible NVR systems.
Built-in Microphone
An integrated microphone captures audio alongside video, providing enhanced situational awareness and supporting audio monitoring where permitted by local regulations.
Infrared Night Vision
Built-in infrared LEDs provide clear night vision with an illumination distance of up to 30 meters, enabling continuous monitoring in complete darkness. Smart IR technology automatically adjusts infrared intensity to help prevent overexposure of nearby objects.
Intelligent Detection Features
The camera supports intelligent monitoring functions including:
Motion Detection
Audio Detection
Video Tampering Detection
Network Disconnection Alerts
Illegal Access Detection
These features improve security by automatically triggering alerts or recordings when specific events occur.
Image Enhancement Technologies
To deliver clearer images in challenging lighting conditions, the camera incorporates:
DWDR (Digital Wide Dynamic Range)
3D Digital Noise Reduction (3D NR)
BLC (Backlight Compensation)
HLC (Highlight Compensation)
ROI (Region of Interest)
Day/Night (ICR) Mode
These technologies improve visibility, reduce noise, and optimize image quality.
Flexible Power Options
The DH-HDW1230T2-A supports both:
12V DC Power
IEEE 802.3af Power over Ethernet (PoE)
PoE enables power and network connectivity over a single Ethernet cable, simplifying installation and reducing cabling costs.
IP67 Weatherproof Protection
Rated IP67, the camera is protected against dust and water ingress, making it suitable for both indoor and outdoor installations in various weather conditions.
Key Specifications
Model: DH-HDW1230T2-A
Camera Type: Fixed-Focal Eyeball Network Camera (IP)
Image Sensor: 1/3.2-inch 2MP CMOS
Maximum Resolution: 1920 × 1080 (Full HD)
Frame Rate: Up to 30 fps
Lens: 3.6 mm Fixed Lens
Field of View: Horizontal 79°, Vertical 43°, Diagonal 94°
Video Compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
Night Vision: IR LEDs, Up to 30 m
Audio: Built-in Microphone
Detection Features: Motion Detection, Audio Detection, Video Tampering
Image Features: DWDR, 3D NR, BLC, HLC, ROI, Day/Night (ICR)
Network Interface: RJ-45 10/100 Mbps Ethernet
Power Supply: 12V DC / IEEE 802.3af PoE
Power Consumption: Max. 4W (PoE)
Protection Rating: IP67 Weatherproof
Ideal Use
Home security, office surveillance, retail stores, warehouses, schools, apartment buildings, entrances, parking areas, corridors, and small to medium-sized business security systems.
